| tên: | đầu nối từ tính | Pitch: | 2.2mm |
|---|---|---|---|
| Pin Number: | 9Pin | Vật liệu: | Đồng thau, ndfeb, htn |
| lực lượng mùa xuân: | 80g ± 20g | Storke làm việc: | 1.0mm |
| Current: | 3.0A | điện áp: | 12V |
| Operation Temperature:: | -25℃ to +80℃ | Liên hệ với điện trở: | Tối đa 50mΩ (PIN) |

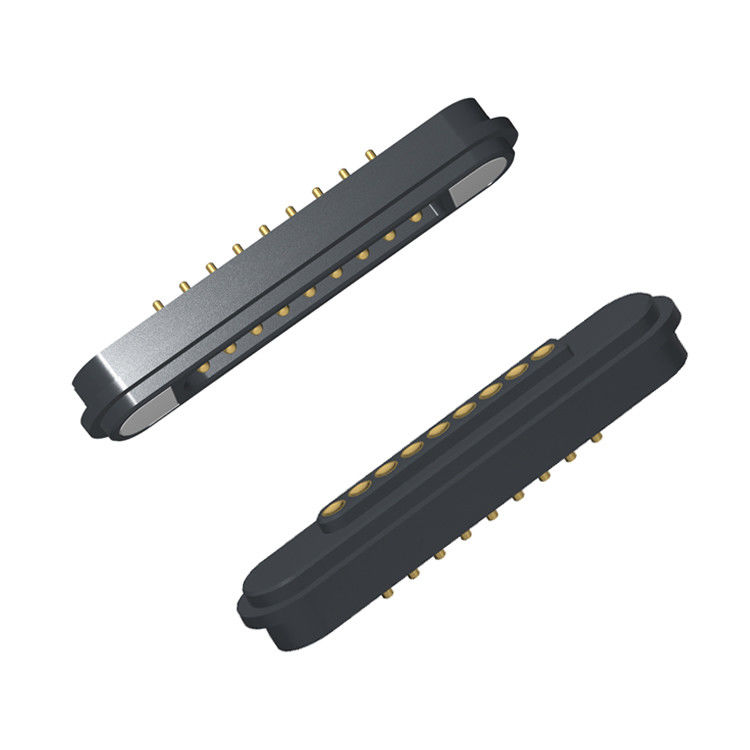

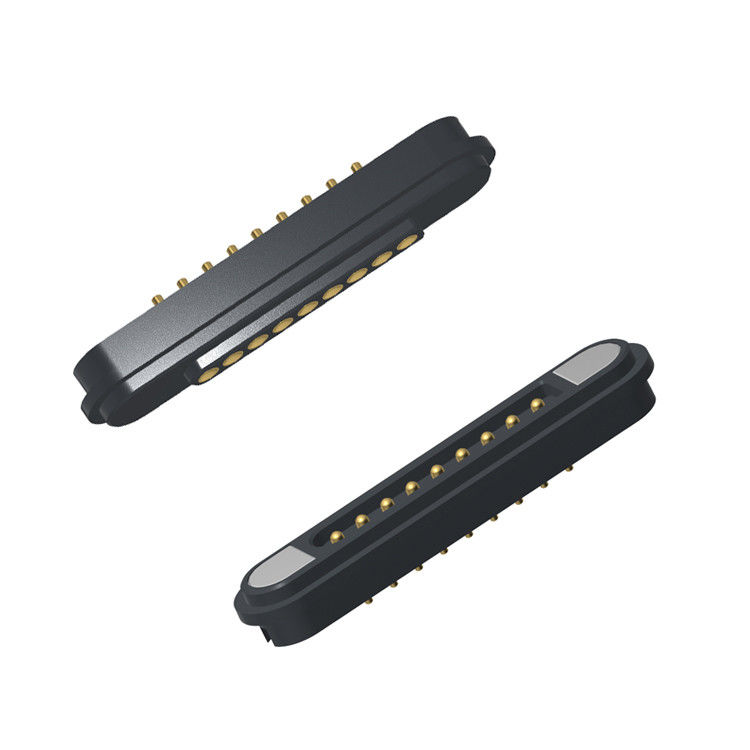

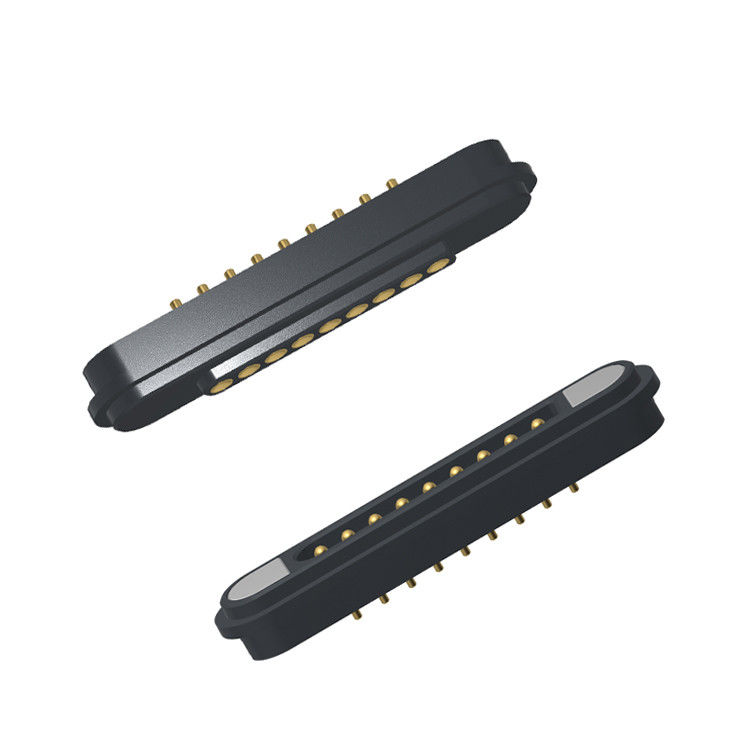

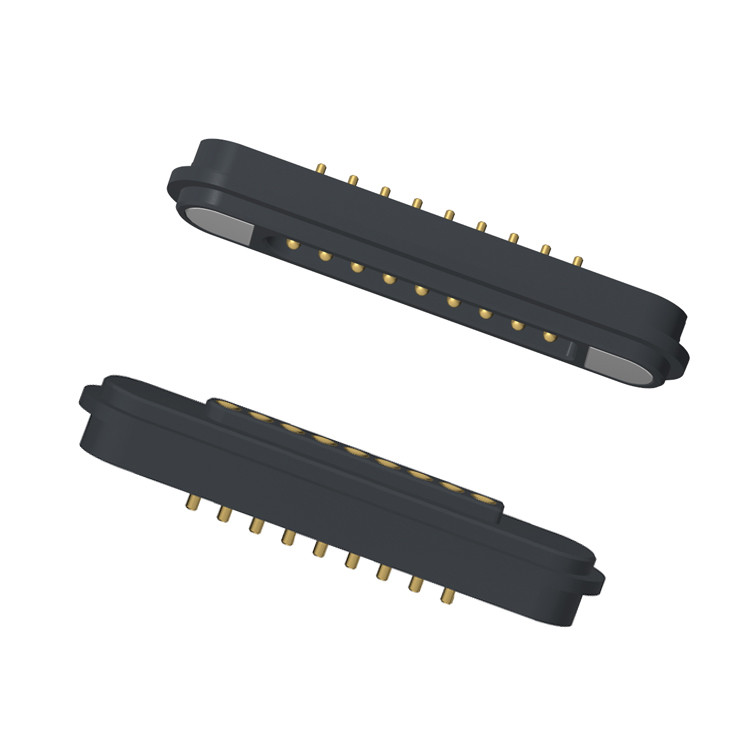

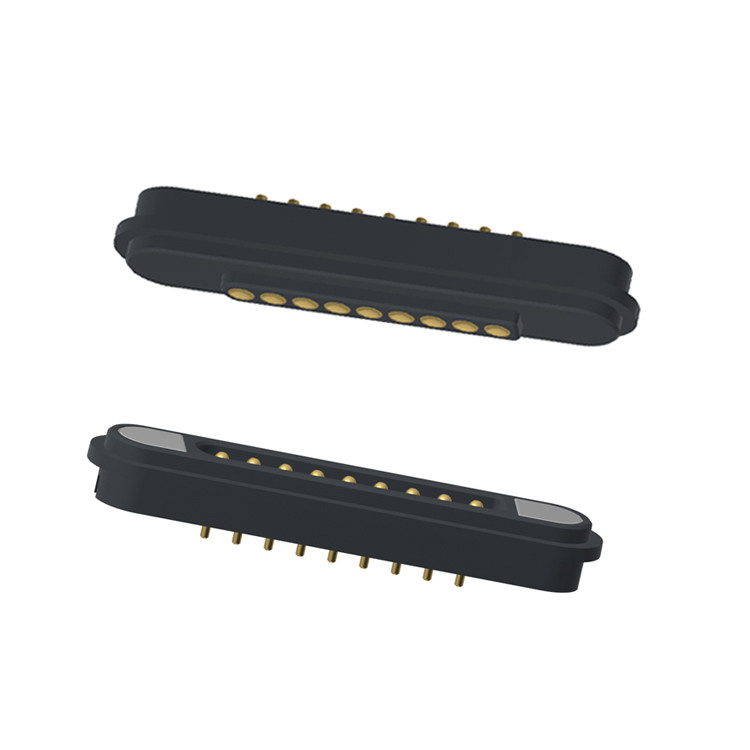

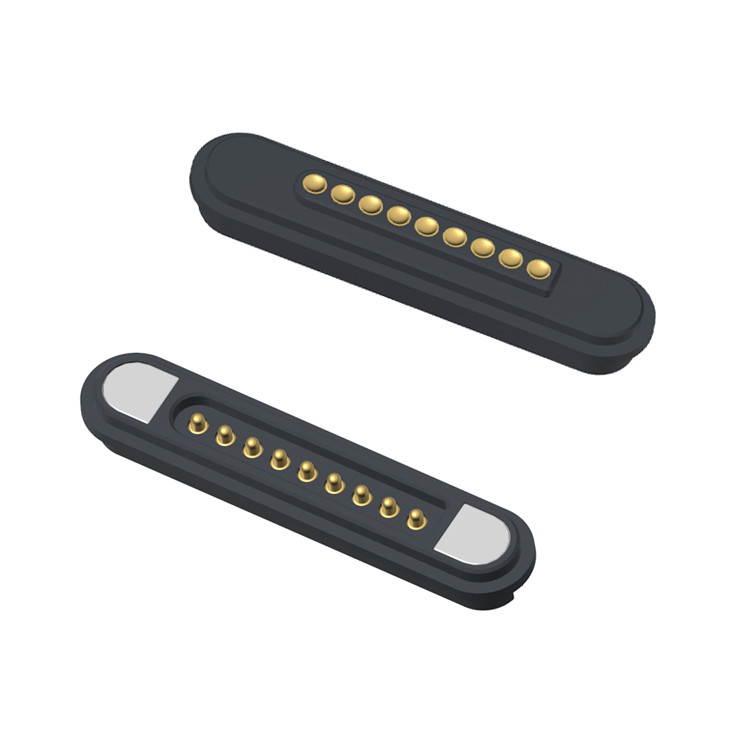

600G Magnetic Force 9pin Pogo Pin Magnetic Connector for Solar Simulator
We design and manufacture professional magnetic connectors & magnetic cable connectors. Our in-house engineering team partners with you to create fully customized magnetic pogo pin connector solutions, precisely tailored to your unique requirements.
As a professional manufacturer of magnetic connectors and magnetic cable connectors, UPE provides end-to-end customization. Our dedicated design engineers work directly with you to understand your specific needs and challenges. We then develop bespoke magnetic pogo pin connector products and integrated solutions, delivering the exact magnetic connectivity you require.
To ensure the contact mechanical life of the pogo pin, NEVER compress it beyond the defined working stroke specified in the drawing. Over-compression can damage the internal spring, leading to reduced performance or failure.
Materials:
Housing: Black HTN UL94V-0
Pogo Pin: Brass C3604 Plating Au 0.125um, Spring: SUS304
Female pin: Brass Plating Au 0.125um
Magnet: N52 NdFeB Plating Ni Cu Ni
Mechanical:
Contact force:80g±20g at 1.0mm working storke
Male and female adsorption Life test: 10,000cycle
Adsorption capacity test: The female docking adsorption is 600g±20%
Electrical:
Rated voltage:DC12V; Rated voltage: 3AMax.
Contact resistance of spring pin: 50 milliohm Max.
Environmental performance:
Temperature tolerance:260℃
Operation Temperature: -25℃ to +80℃
Environmental Test: Salt Spray 48 hours
9Pin Male Magnetic Connectors & Female Magnetic Connector Parameter:
|
Name |
Magnetic Connector |
|
Type |
Male/Female |
|
Pin |
9pin |
|
Pitch |
2.2mm |
|
Color |
Black |
|
Pogo pin |
Brass C3604 Plating Au 0.125um |
|
Female pin |
Brass Plating Au 0.125um |
|
Housing |
Black HTN UL94V-0 |
| Magnet |
N52 NdFeB Plating Ni Cu Ni |
|
Spring force |
80g±20g,at 1.0mm working storke. |
|
Mechanical life |
10000 cycle Min.. |
|
Current |
3.0AMax |
|
Voltage |
DC12V |
|
Contact resistance |
50mΩ Max (PIN). |
|
Operation Temperature |
25℃to +80℃ |
|
Salt spray test |
48H |
|
Certification |
ROHS or REACH compliant product |
|
Test |
100% open and short test |
9Pin Male Magnetic Connector Technical Drawing
